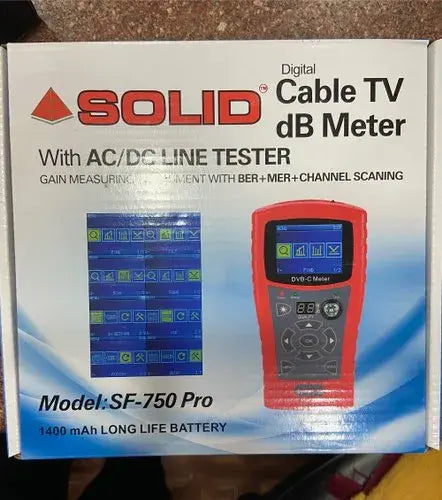

Solid Cable Tv Db Meter 750 Pro
Solid Cable Tv Db Meter 750 Pro
Regular price
Rs. 3,800.00
Regular price
Rs. 4,100.00
Sale price
Rs. 3,800.00
Unit price
/
per
Taxes included.
Couldn't load pickup availability
Minimum Order Quantity: 1 Piece
| Accuracy | 2db |
| Measuring Range | 30 to 130 dB |
| Power Supply | 13~18V DC |
| Resolution | 1 dB |
| Frequency Range | 950-2150 MHz |
SOLID SF-750PRO DVB-C (BER+MER) dB Meter with AC / DC Features : Support DVB-C function Support Automatic channel scanning Build highlight LED Show the signal quality of the nixie tube Built-in buzzer Support to check the power cable automatically Support to reset to defaults The unit of signal power support dBm, dBuV Use USB 2.0 for software upgrade and data backup. Specifications of DVB-C signals - Frequency - 47 to 862 MHz Impedance - 75ohm Signal level - -78 to -10dBm Symbol Rate - 1.4M to 7.5M baud Demodulation Scheme - 16QAM / 32QAM / 64QAM / 128QAM / 256QAM Demolution type - DVB-C Brandwidth - 6MHz / 8Mhz
