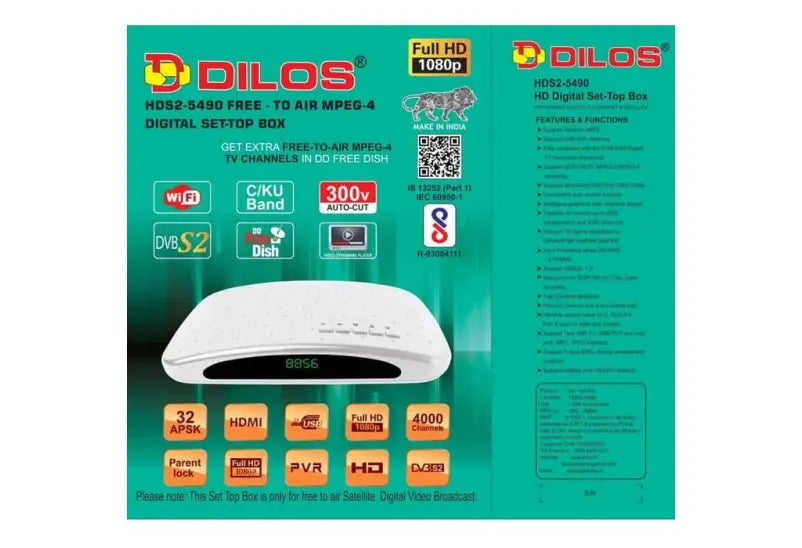

DILOS HDS2-5490 Free-To-Air Full HD Set Top Box

The DILOS HDS2-5490 is a Free-To-Air (FTA) Full Hd set top box that supports full HD DVB-S2 satellite TV channels.



Here are its key specifications:

General Specifications:

1. Model: DILOS HDS2-5490

2. Type: FTA Full HD DVB-S2 Set-Top Box

3. Power Supply: 12V, 1A

4. Power Consumption: ≤ 15W

5. Weight: ≤ 0.5kg

Tuner and Demodulation:

1. Tuner: DVB-S2, QPSK, 8PSK

2. Frequency Range: 950-2150 MHz

3. Demodulation: DVB-S2, DVB-S

Decoding and Video:

1. Decoding: MPEG-4 AVC/H.264, MPEG-2

2. Video Resolution: Up to 1080p (1920x1080)

3. Aspect Ratio: 4:3, 16:9

4. Video Output: HDMI (version 1.4), CVBS (RCA)

Audio:

1. Audio Decoding: MPEG-1 Layer I/II, MPEG-2 Layer I/II,

2. Audio Output: RCA (L/R), S/PDIF (optical and coaxial)



Connectivity:

1. LNB Input: F-type connector

2. RF Output: F-type connector

3. USB: USB 2.0 (for PVR and software updates)

4. HDMI: HDMI 1.4 (for HD video output)

Other Features:

1. FTA Channel Support: Receives unencrypted FTA channels

2. Favorite Channel Edit: Allows users to edit and manage favorite channels

3. Parental Lock: This Full HD set top box enables parental control for restricting access to certain channels

4. PVR Ready: Supports recording and playback of TV programs using an external USB storage device

Software and Firmware:

1. Operating System: Linux-based

2. Firmware Upgrade: Available via USB or online update

Supported Free TV Channels -

MPEG-2 Channels

MPEG-4 Channels

Specifications:

Chipset: ALi

RAM: 512MB

Firmware: 4MB



Features :

Fully compliant with the DVB-S2 digital TV Reception standards.

Support SDTV MPEG-2/ MPEG-4/ H.264 decoding.

Support HDTV 480i/480p/576i/576p/720p/1080p.

Convenient auto search function.

Intelligent graphical user interface design.

The capacity of storing up to 1000 transponders and 2000 TV channels.

Support DVB-S/S2 digital TV signal modulated in QPSK/8PSK.

Input frequency range 950 MHz to 2150 MHz.

Support DiSEqc1.0 and DiSEqc1.2

Reception for SCPC/MCPC, C/ku Band reception.

Fast channel selection

Favorite channel Edit, parental lock

Variable aspect radio (4:3, 16:9) 4:3 Pan and Scan or Letter Box modes.

Support Multi audio feed

Support USB 2.0 and OTA software upgrade.

Support USB 2.0 Live TV Recording.

This Full Hd Set Top Box Support YouTube app

Support Online Streaming by USB and Online Link file

Package included :

1 X Free to air Set-Top Box

1 X Remote

1 X AV Cable

1 X Power Adopter
